Static Cylinder Bundles

V-STATIC PED Static Cylinder Bundles

Verigas has reimagined the concept of gas static storage. Our products are designed for maximum versatility. Whether you want them side by side or stacked, they are easy to locate and well protected.

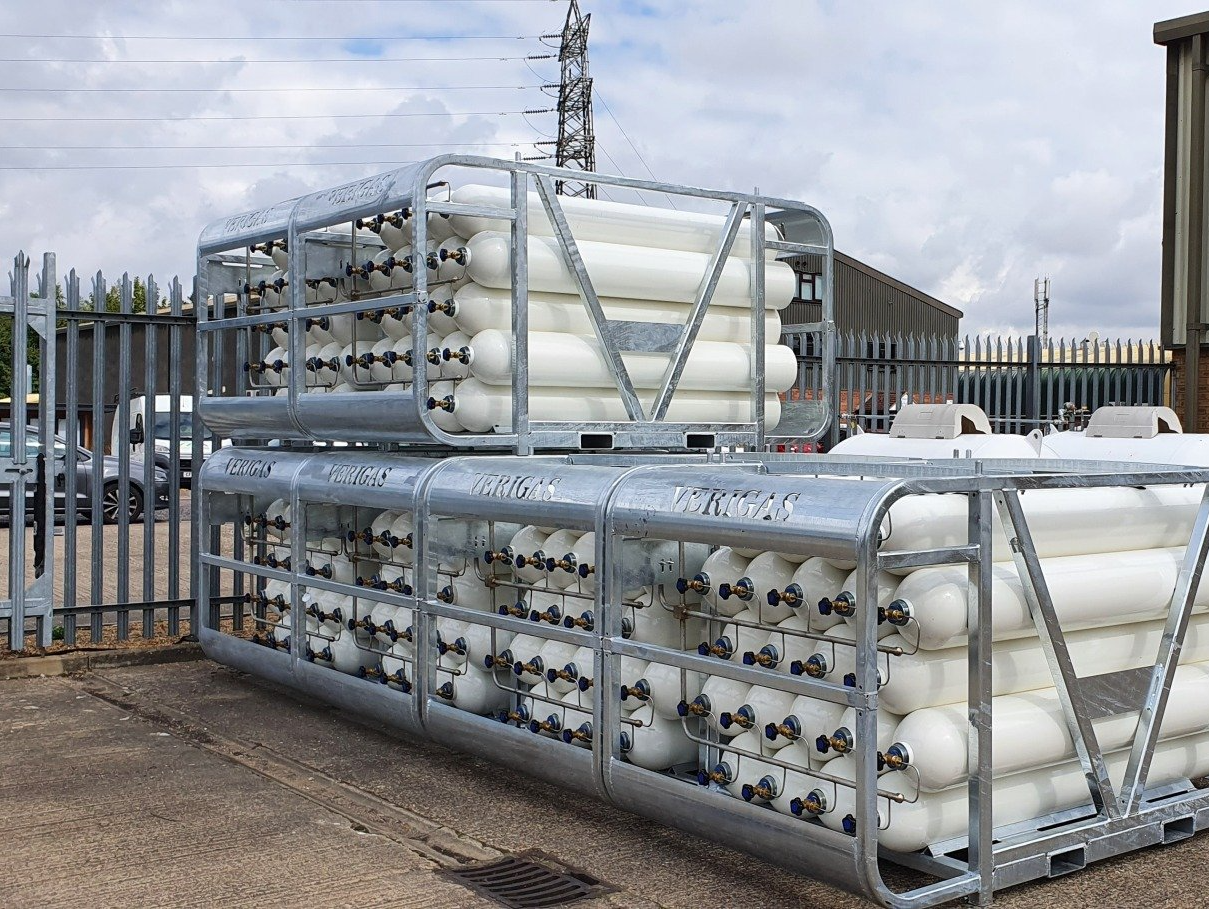

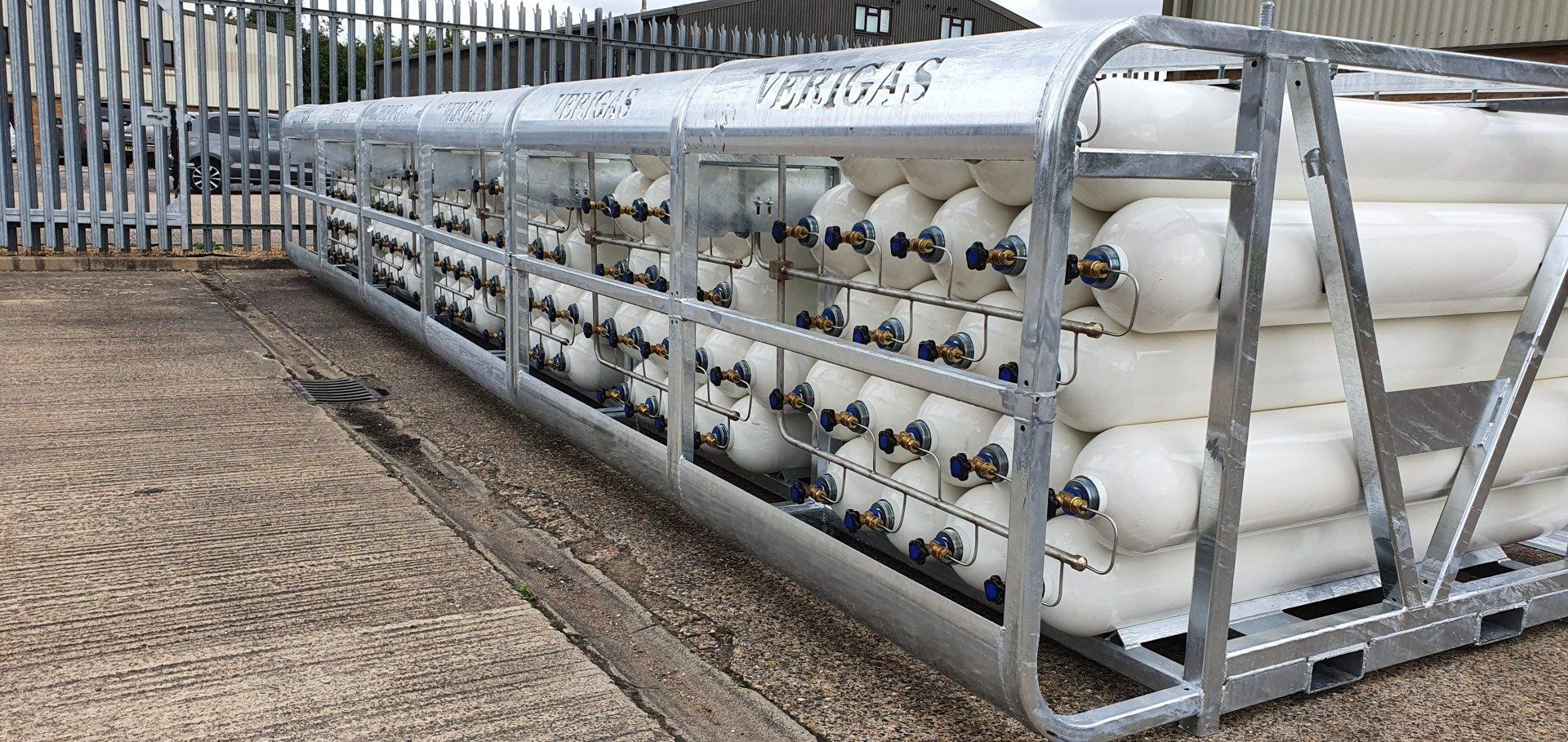

Fully compliant to the latest UK and EU regulations! The Verigas V-STATIC range of bundles can each accommodate up to 22 cylinders and can be stacked to provide even more.

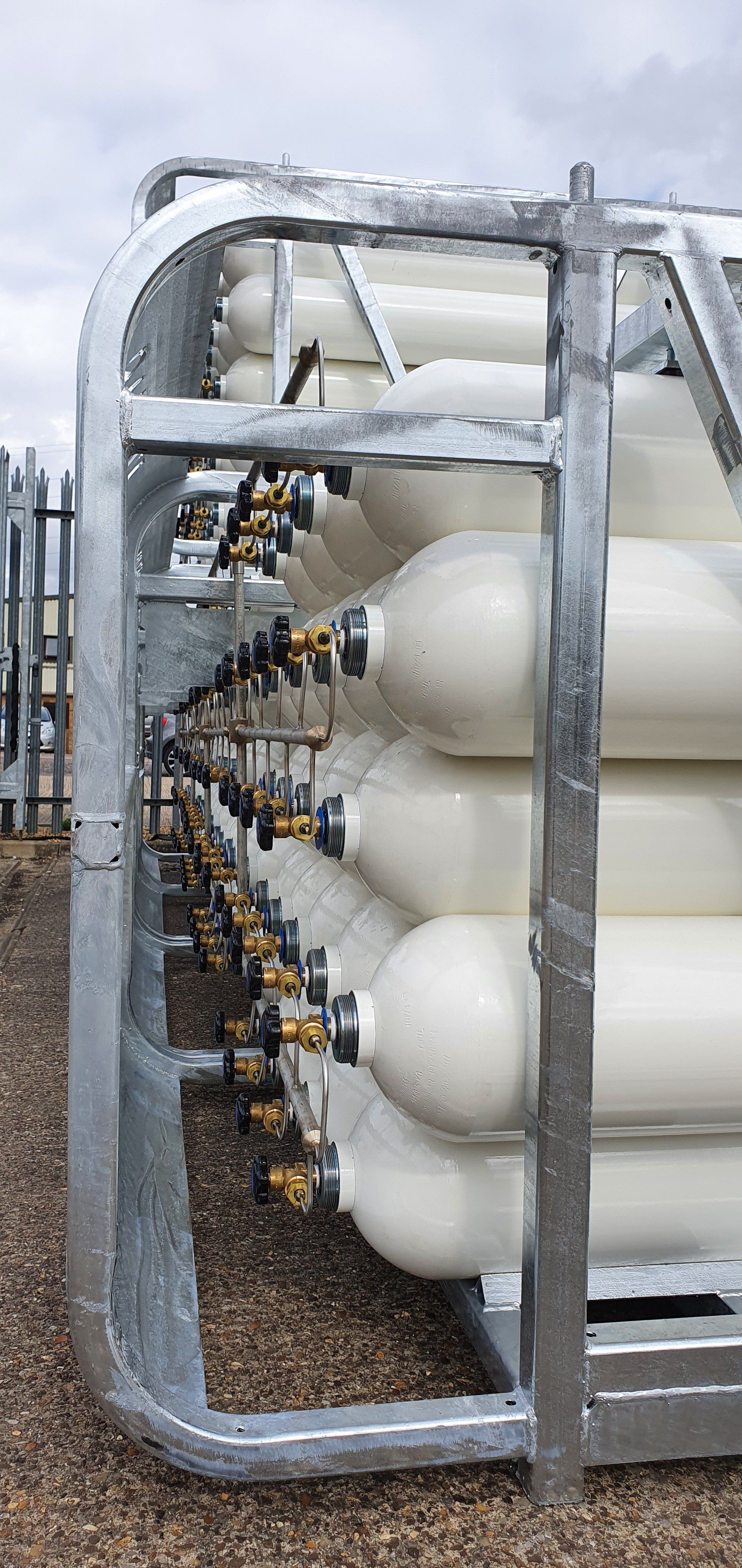

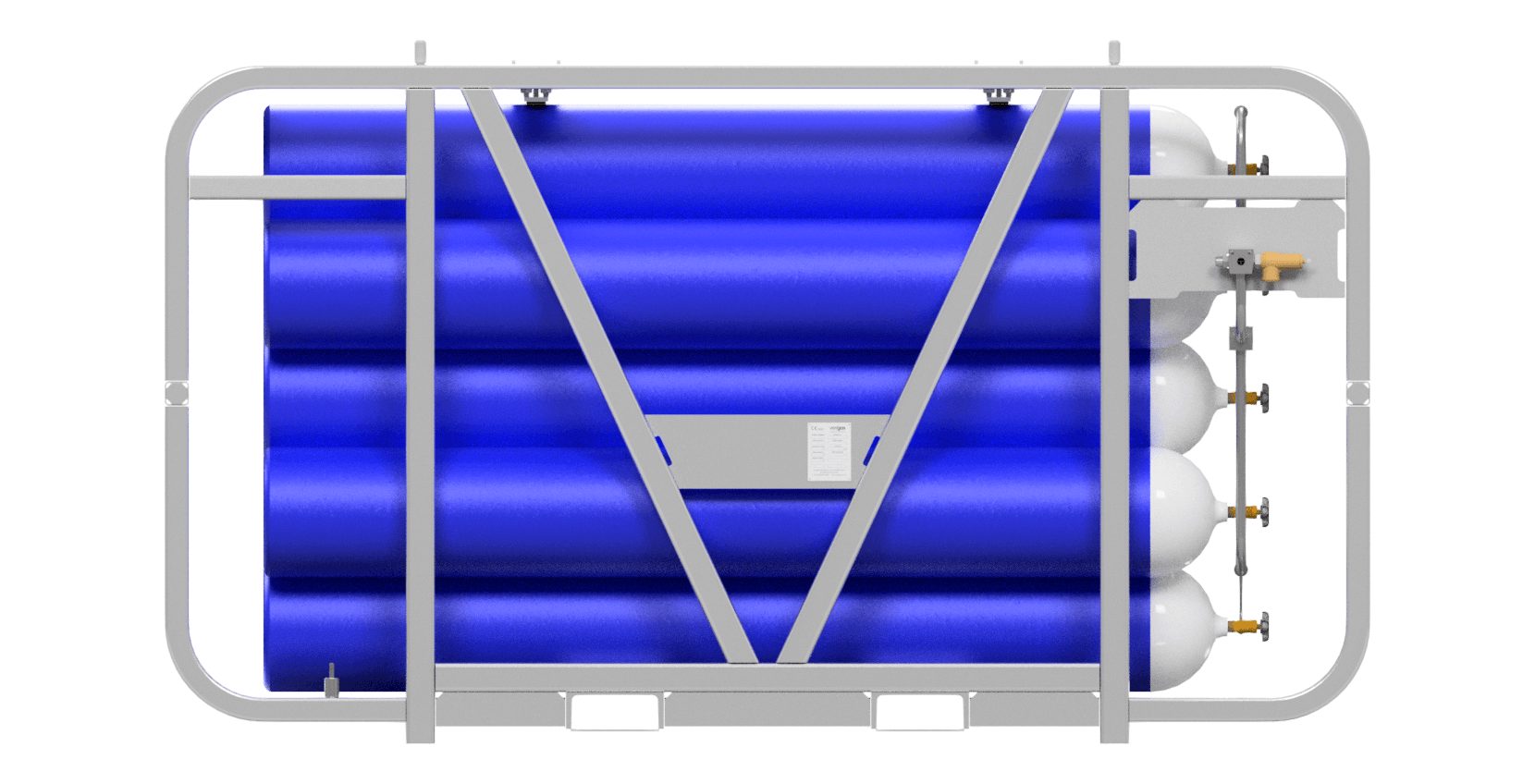

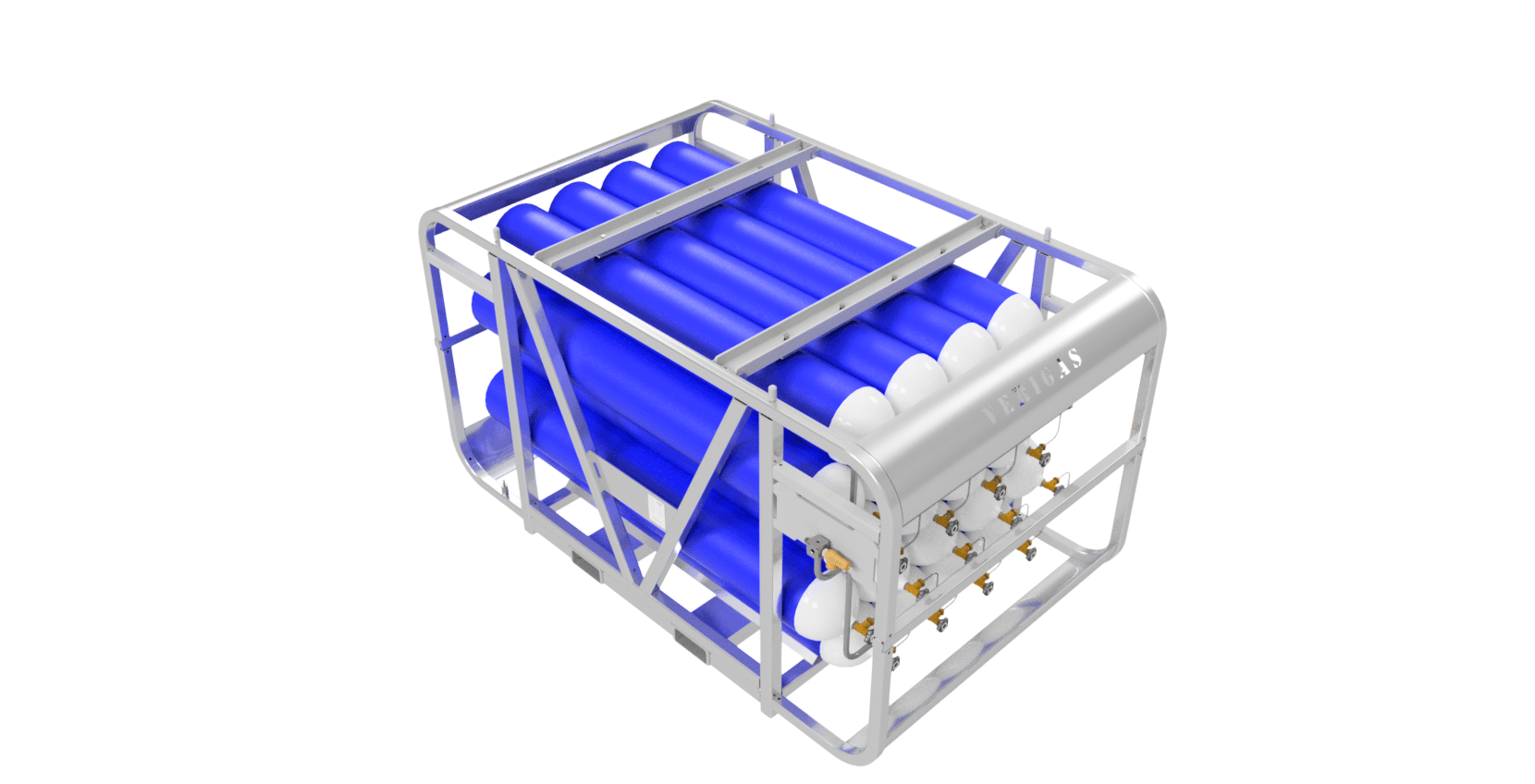

The innovative fully galvanised frame design provides maximum cylinder support and safe retention. The frame has integral guards for both manifold, valves and cylinders. Additional control equipment and interconnecting pipework can be easily incorporated – we’re happy to help!

Key Features

• Fully UK & EU 3rd party PED certified

• 300 BAR maximum working pressure

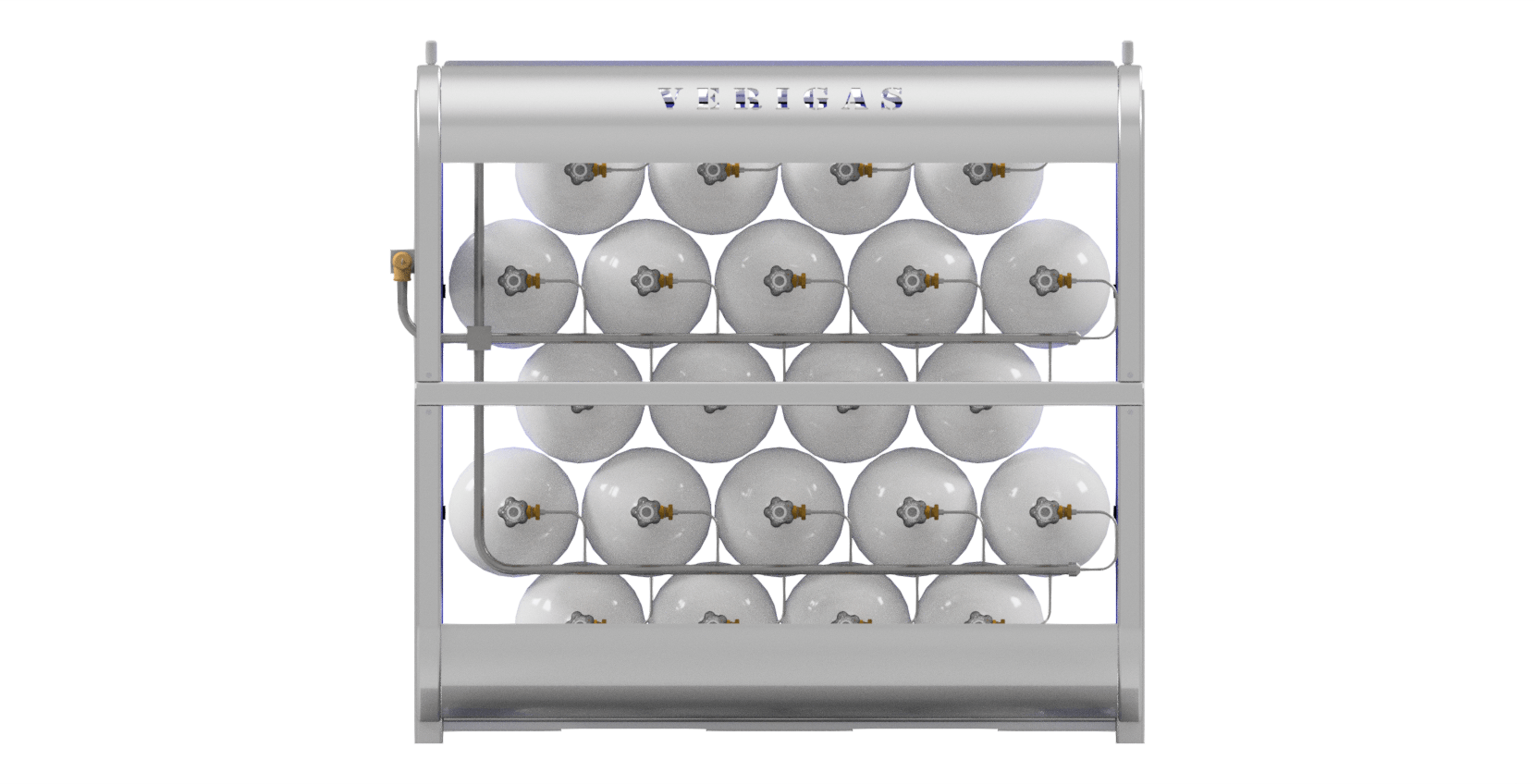

• 89L water capacity cylinders (max 22)

• To suit inert, oxygen, flammable and gas mixtures

• Stainless steel manifold (316/L)

• Frame - high quality hot dip galvanised for longevity

• Secure cylinder clamping

• Stackable two high

• Forklift pockets for easy manoeuvrability

• Fitted with cylinder, safety, bank isolation valves and earth boss

• Pad eye lift point - customer option

• Supplied with full documentation and certification pack
